Industry Grid Cement Mill Liners Wear Resistance With ZGCr5Mo

Product Categories

Wuxi Orient Anti-wear Engineering Co.,Ltd.

Contact Now

Name: Industry Grid Cement Mill Liners Wear Resistance With ZGCr5Mo
Brand: Chen's Liner
Price: 1 USD

Place of Origin : Jiangsu,China (Mainland)

Brand Name : Chen's Liner

Model Number : DF035

MOQ : 2 Metric Ton/Metric Tons

Price : Discuss in email

Packaging Details : Packed by steel pallets.

Delivery Time : It depends on the quantity to be ordered.

Payment Terms : L/C,T/T

Supply Ability : 4500 Metric Ton/Metric Tons per Year

Port : Shanghai

Certification : ISO9001

Application : Mining Industry

Material : ZGCr5Mo

Dimensions : As per drawings

Hardness : More than HRC46

Product Name : Ball Mill Liners

Perfomance : Wear Resistance

Contact Now

Industry Grid Cement Mill Liners Wear Resistance With ZGCr5Mo

Summarization

Alloy Steel is our conventional material.We have supplied castings for Multotec,Mesto,CMC etc.

It posses excellent performances of high strength,toughness and longer service life.And it is widely used in AG Mill,SAG Mill and Ball Mill.

We applied resin sand the sodium silicate sand casting process.

Specification

Model Number	DF035
Material	ZGCr5Mo
Hardness	≥HRC46
Dimension	As per drawing
Casting Process	Sand Casting
Impact Value	AK40-50J
Inspection	Dimensional Inspection Chemical Composition Inspection Hardness Inspection UT Test
Application	Coal Mill,Cement Mill,Mining Industry etc.
MOQ	2Tons
Delivery Time	Depends on the quantity to be ordered.
Port	Shanghai
Package	Steel Pallets
Payment Terms	T/T,L/C

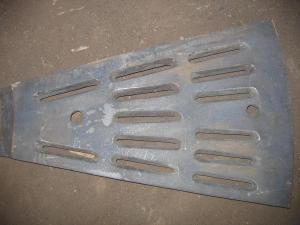

Product Photo

Industry Grid Cement Mill Liners Wear Resistance With ZGCr5Mo

Technical Parameters

Item	Cr-Mo Alloy Steel Ⅰ	Cr-Mo Alloy Steel Ⅱ	Cr-Mo Alloy Steel Ⅲ
C	0.3-0.5	0.65-0.90	0.4-0.9
Si	0.15-1.20	≤0.75	0.7-1.2
Mn	0.4-1.2	0.5-1.2	0.6-1.0
Cr	1.7-2.5	1.5-2.5	4.0-7.0
S	≤0.04	≤0.06	≤0.04
P	≤0.04	≤0.06	≤0.06
Mo	≤0.5	≤0.5	≤0.15
Cu	0.1-0.6	≤0.25	0.2-0.4
Ni	≤0.5	≤0.3	0-0.3
Re	≤0.02	≤0.02	≤0.02
Equivalent Specification	DL/T 681-1999 GB/T26651-2011	AS2074L2B Mod	DL/T 681-1999
Material Type	Martensite Steel	Martensite or Pearlitic Cr Mo Steel	Martensite Steel
Hardness	HRC≥48	HB470&HB321-370	HRC≥50
Impact Value	AK≥40J	-	AK≥10J

Company Introduction

Industry Grid Cement Mill Liners Wear Resistance With ZGCr5Mo

Inspection Facilities

Industry Grid Cement Mill Liners Wear Resistance With ZGCr5Mo
